Visualizing KORE SUPER SIM Event Streams in Real Time

Hi there, my name is Vitor Ribeiro, and I am a Solutions Architect at KORE Wireless.

In this article, I’ll show you how I built a full real-time geospatial visualization tool for KORE SUPER SIM using the Event Streams, FastAPI, and Leaflet using OpenAI Codex

You can download the code from my GitHub repository here

⭐ What the App Does

Super SIM Heatmap provides:

Real-time Super SIM event ingestion
Persistent storage of CloudEvents payloads
Dual online/offline heatmap layers
Timeline slider for replay
Device event feed with metadata
Click-to-pan tower visualization

🌍 Why Visualize Super SIM Events?

KORE SUPER SIM emits session lifecycle events such as:

connection.data-session.started
connection.data-session.updated
connection.data-session.ended

Visualizing them helps teams understand connectivity patterns and issues across geography and time.

🧱 Architecture Overview

1
2
3
4
5
FastAPI     → Webhook ingestion
SQLite      → Raw event persistence
SQLModel    → ORM
Leaflet     → Heatmap rendering
Jinja2      → Templates

⚡ Webhook Ingestion

The webhook endpoint:

1
POST /webhooks/supersim

Validates, extracts, and persists raw event payloads.

🔥 Dual-Layer Heatmap

Green = online
Red = offline

State is inferred by latest event per ICCID.

⏱ Timeline Scrubbing

Scrub 00:00–23:59 and reconstruct fleet activity by timestamp.

Shows:

ICCID
Tower
Network
RAT
Timestamp

🤖 Synthetic Data Seeder

Simulates START → UPDATE → END events across global cities.

Example:

1
.venv/bin/python scripts/seed_events.py --region naples --devices 50 --count 550

🧪 Manual cURL Tests

Includes samples for all session lifecycle events.

🖥 Web UI Overview

Device sidebar
Heatmap toggles
Timeline slider
Stats counters

📁 Project Structure

1
2
3
4
5
app/
scripts/
templates/
static/
docs/

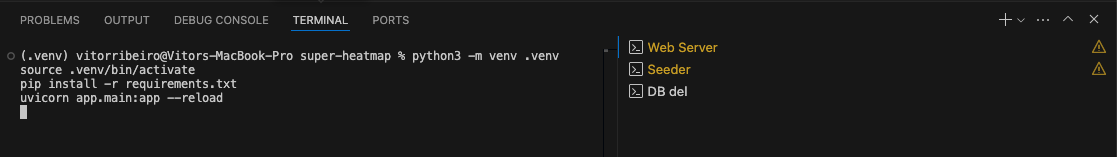

🛠 Quick Start

1
2
3
4
python3 -m venv .venv
source .venv/bin/activate
pip install -r requirements.txt
uvicorn app.main:app --reload

🛠 Seed sample data

50 devices in Naples, ~550 sessions total

1
.venv/bin/python scripts/seed_events.py --region naples --devices 50 --count 550

30 devices in every region, 5 sessions each

1
2
3
for region in naples toronto saopaulo lisbon shanghai capetown sydney; do
  .venv/bin/python scripts/seed_events.py --region "$region" --devices 30 --sessions-per-device 5
done

🛠 Map Examples

Map after seeding data

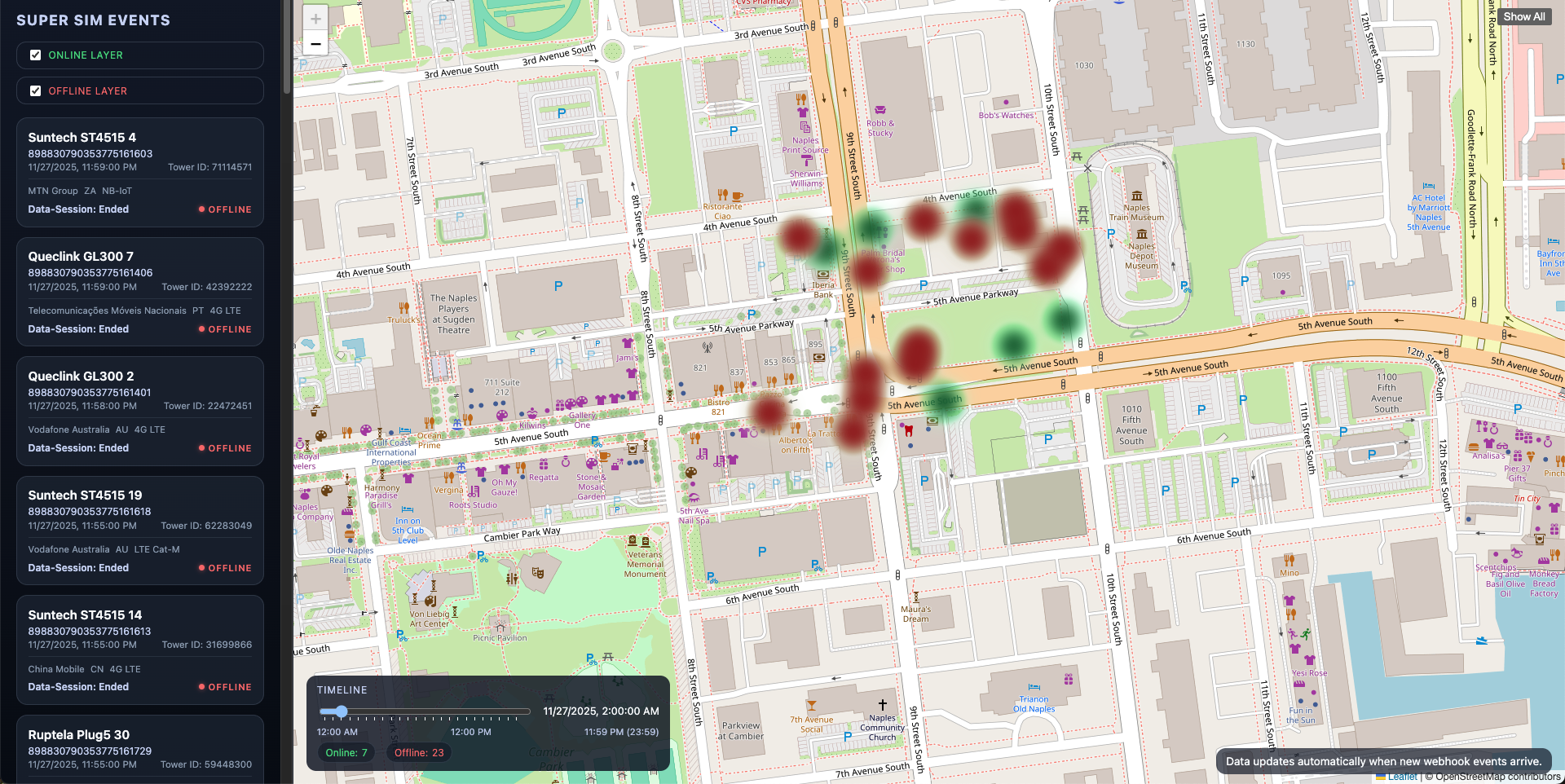

Map after filtering data using the Timeline

Map after filtering data using the Timeline Online Only.

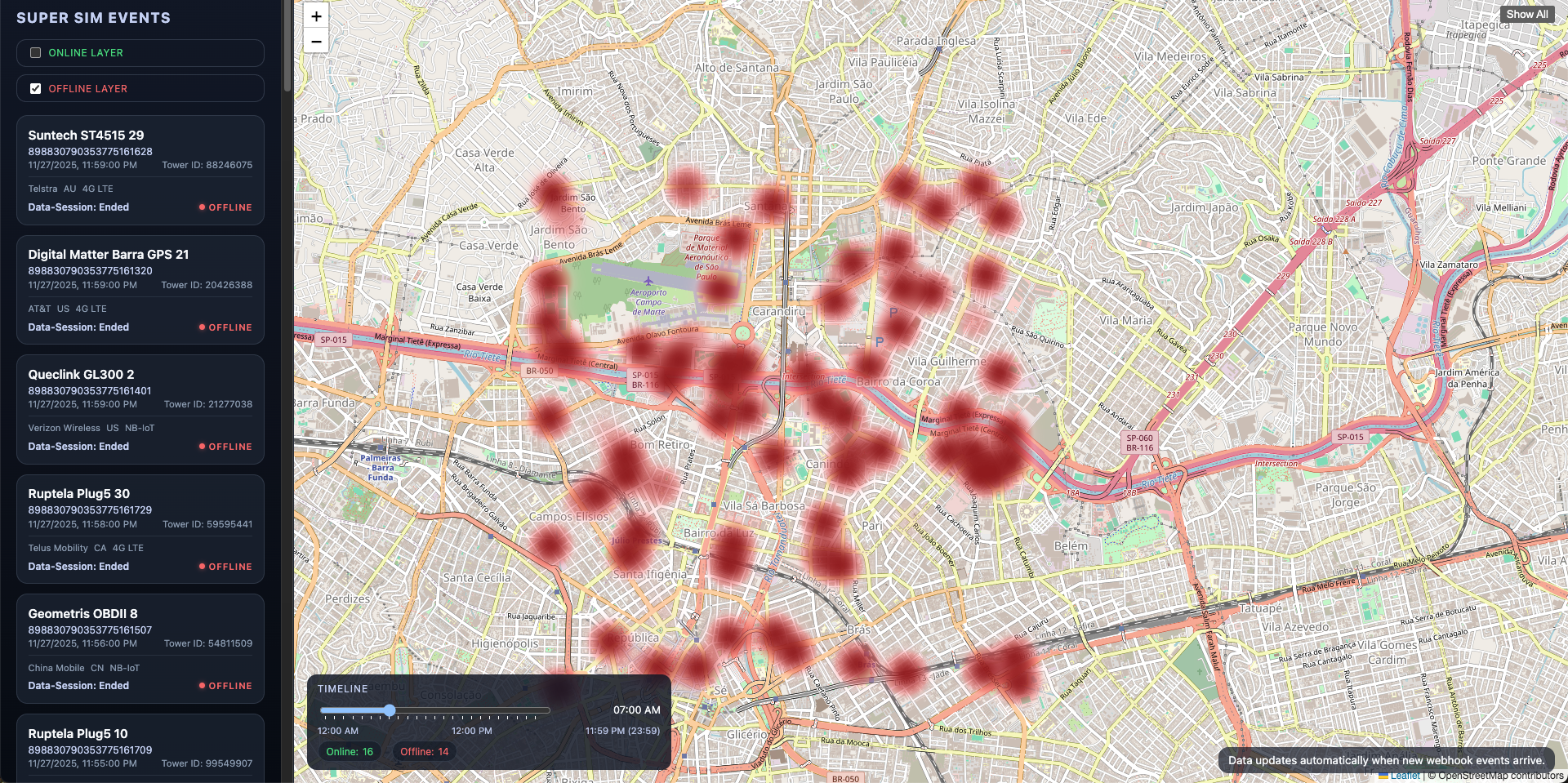

Map after filtering data using the Timeline Offline Only.

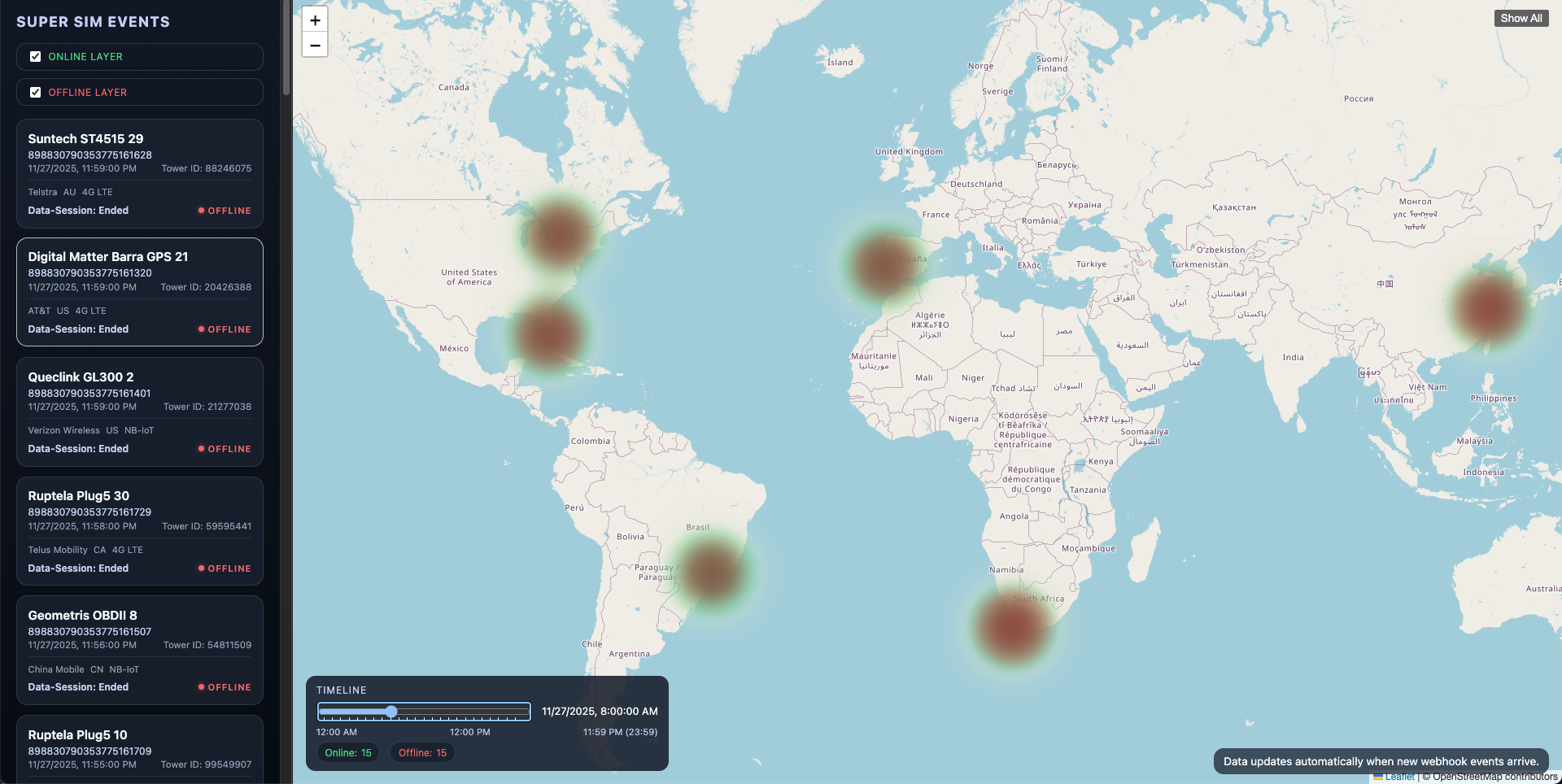

Map after clicking SHOW ALL

KORE SUPER SIM Heatmap using Event Streams

A Github repository for a real-time geospatial dashboard using KORE SUPER SIM Event Streams, FastAPI, and Leaflet.
