Getting Started with KORE SUPER SIM Event Streams

Introduction

Hi there, my name is Vitor Ribeiro, and I am a Solutions Architect at KORE Wireless.
As part of my work with customers, I help onboard teams into our developer ecosystem — including features like Event Streams, which provide real-time data delivery for KORE products, including Super SIM.

This article will show you how to configure Destinations, create Streaming Rules, and receive events using a Webhook.

It’s inspired by the official documentation but written with a more practical, step-by-step approach.

Prerequisites

Event Streams are available on the KORE Developer Console.

You will need:

Contracted for KORE SUPER SIM or registered account at KORE Console)
Access to the KORE Developer Console
A reachable HTTPS Webhook endpoint.

If you are not a KORE Wireless customer and want access to these services, contact us here.

You don’t need advanced programming knowledge, but you should be familiar with concepts like:

Overview

Event Streams allow you to receive real-time events from KORE products delivered to a destination you configure.

The core components are:

Component	Description
Destinations	Where events are delivered (Webhook or AWS Kinesis).
Streaming Rules	Define which events should be delivered and to which destination.
Event Types & Event Schemas	The structure and versioning of the JSON payloads you will receive.

This article focuses on helping you set up an end-to-end flow that begins with event delivery and finishes with a working webhook receiver.

Creating a Destination

A Destination represents where Event Streams should deliver your data.

You can choose:

A Webhook (recommended for simple setups and testing)
An AWS Kinesis Stream (recommended for production)

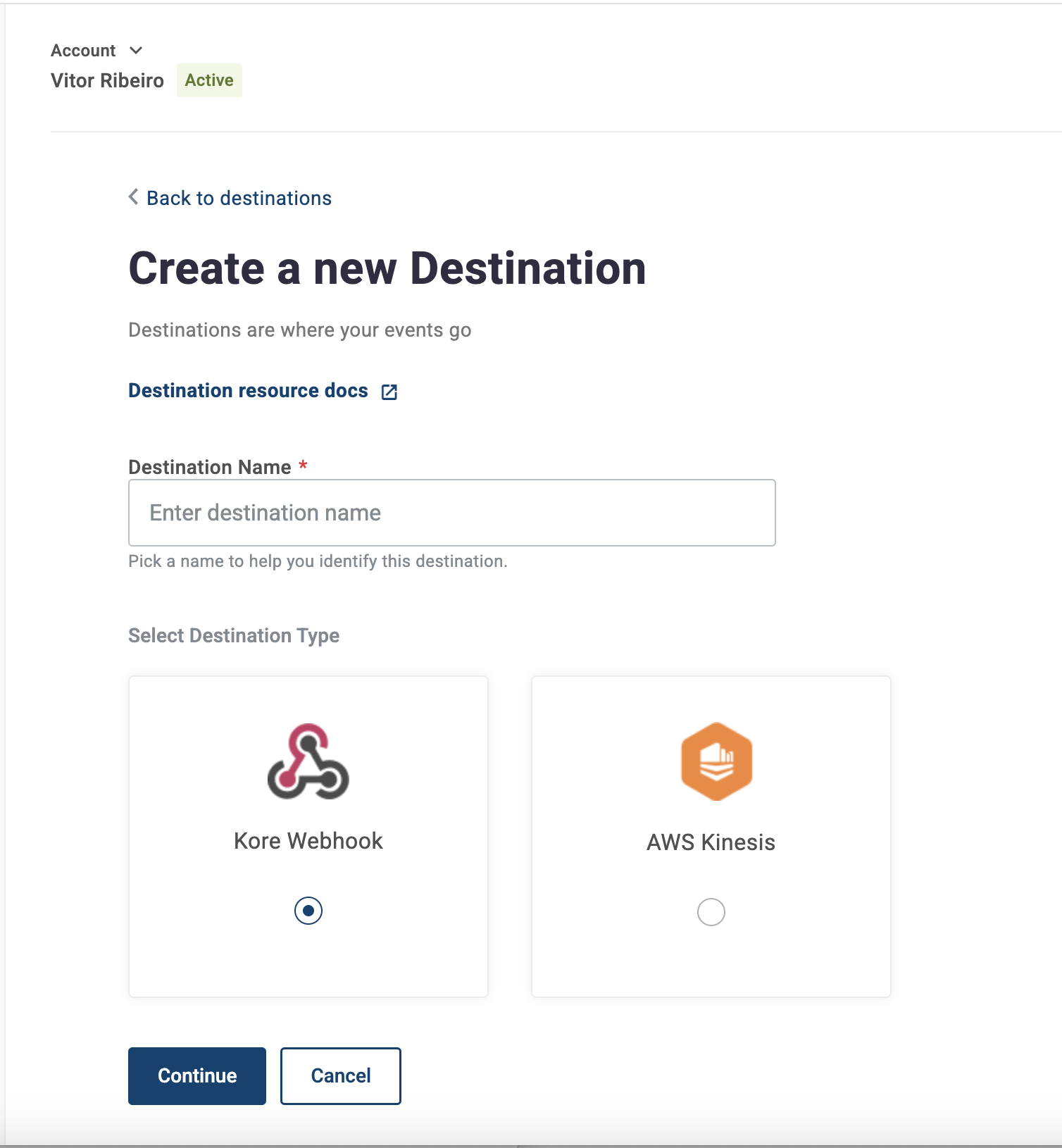

Creating a Webhook Destination

Log into the KORE Developer Portal.
Navigate to Event Streams → Destinations.
Select “+ Create”.
Choose Kore Webhook as the destination type.
Provide:
- Destination URL — must be a reachable HTTPS endpoint
- HTTP Method — typically POST
Save the destination.

Once saved, open the Destination and use “Test Event” to confirm that KORE can reach your endpoint.

If the test fails, confirm your firewall rules, SSL certificate, or public exposure of your endpoint.

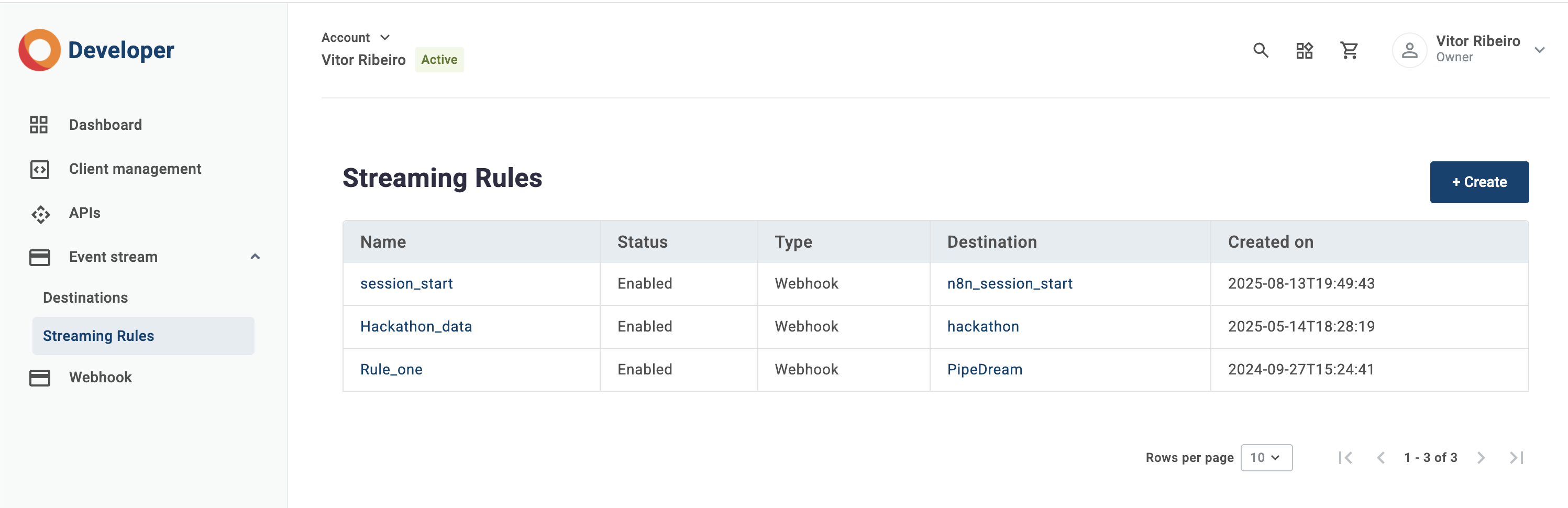

Creating a Streaming Rule

A Streaming Rule defines which event types you want and where they should go.

Creating a New Rule

Go to Event Streams → Streaming Rules.
Select “+ Create”.

Configure:

Rule Status → Enabled or Disabled
Destination → select the destination created previously
Streaming Rule Name
Product Group → Connectivity
Event Types → choose individual event types
Schema Version → apply globally or per event type

Save your rule.
Once the rule is Enabled, events will begin flowing immediately.

Use Disabled if you are not ready to receive events yet.

Understanding Event Types & Schemas

You can browse all KORE event types in Event Streams → Events.

Events follow the CloudEvents 1.0 specification:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
{
  "data": { "...": "event data" },
  "id": "fff521c2-c7db-4b53-a5a0-c5d5d01f66ce",
  "time": "2024-09-25T19:09:48.5842087+00:00",
  "type": "com.kore.eventstreams.test.event",
  "source": "kore-events",
  "dataschema": "/schemas/test/1",
  "specversion": "1.0",
  "datacontenttype": "application/json"
}

Why schemas matter:

They help ensure consistent parsing
They provide versioning for long-term compatibility
They make downstream analytics easier

Building a Webhook Server + Heatmap

Below is a simple Python + FastAPI webhook listener adapted from KORE’s Super SIM Event Streams example plotting START/UPDATE AND ENDED events.

You can download the code from my GitHub repository here. You can read more about the KORE SUPER SIM Heatmap here.

Expose it publicly using something Cloudflare Tunnels:

Then set your Destination URL to:

1
https://yourdomain.com/webhooks/supersim

Testing Your Setup

Test the Destination

Use the “Test Event” button in the Destination details on the Developer Portal.

Your server should print the test event.

Trigger Real Events (Super SIM Example)

When using Super SIM, you will receive lifecycle events such as:

connection.attachment.accepted
connection.data-session.started
connection.data-session.updated
connection.data-session.ended

These events are perfect for dashboards, analytics, or alerting pipelines.

Considerations

Event Streams are powerful, but you should design your system with these best practices in mind:

Events may be batched — up to 50 in a single request
Events may be duplicated — dedupe using the CloudEvents id
Events may arrive out of order — rely on the time property
Webhook endpoints must respond quickly (< 5 seconds)

For large-scale deployments, consider using AWS Kinesis or a message queue downstream.

If you have any questions, feel free to reach out to me here.

Available Resources

Developer Portal

Visit the Developer Portal for documentation, API reference, and schema exploration.

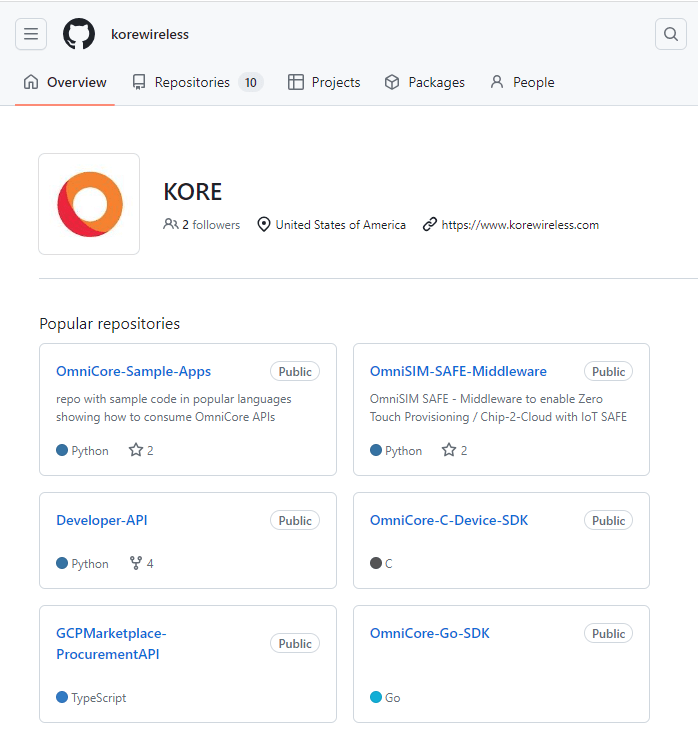

GitHub

KORE offers a GitHub repository with code samples:

https://github.com/korewireless

More Event Streams examples will be added over time.
